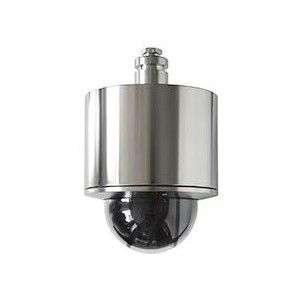

Stainless steel material 304
-
20x high-speed ball with built-in VET
-
Explosion proof grade: Ex DII CT6
-
H.265/MJPEG
-
5 million pixels 1/2.8 "CMOS
-
High definition resolution 2592X1944
-
JPEG image capture
-
Video bandwidth: 32Kbps -8Mbps optional
-
20 times optical, 16 times electronic
-
4.3mm—86mm
-
Color to black, 0.005Lux
-
Wide Dynamic
-
Motion detection
-
IP68
-
Power supply 24VAC
|
ITEMS
|
Specifications and Parameters
|
|
Network Interface
|
RJ45 10M/100M adaptive Ethernet port
|
|
Protocol
|
TCP/IP、HTTP、UDP、RTP/RTCP、RTSP、DHCP、SMTP
|
|
Sensor
|
1/2.8＂CMOS
|
|
Lens
|
F=4.3mm—86mm, 20x optical, 16x electronic
|
|
Motion detection
|
On/off
|
|
Backlight Compensation
|
On/off
|
|
White balance
|
Automatic, Indoor, Outdoor
|
|
Video Format
|
NTSC, PAL
|
|
Encoding
|
Dual stream, H.265/MJEPG
|
|
Framerate
|
25 FPS(PAL), 30 FPS(NTSC）
|
|
Performance
|
Maximum 30fps, 32Kbps -8Mbps optional
|
|
Resolution
|
2592×1944—352X240
|
|
Delay
|
Less than 200 milliseconds (LAN)
|
|
Audio Compression
|
G.711
|
|
Sampling Rate
|
8K
Hz
|
|
Bitrate
|
64Kbps
|
|
Audio In
|
1 microphone
|
|
Audio Out
|
1 headphone output
|
|
Control Interface
|
1 RS485, speed 2400bps -115200bps
|
|
Control Protol
|
Pelco-D, Pelco-P
|
|
Alarm input/output
|
1 Alarm in, 1 Alarm out
|
|
Power
|
AC24V
/ 36W
|
|
Operation Temperature
|
-40
~ 60 ℃
|
|
PTZ
|
Range
|
Horizontal: 360 ° (continuous flip) Vertical:+ 2°-- -92°
|
|
Speed
|
Preset：360°/s
|
|
Manual：0.05°～380°/s（zoom selection）
|
|
Cruise: 1.4 °~180 °/s
|
|
Preset
|
240 preset positions
|
|
Cruise
|
4 custom cruises
|
|
Preset Cruise
|
8 preset cruise positions
|
|
Group
|
8
|
|
Other
|
Automatic scanning, power-off protection, etc
|
|
OSD
|
On/Off (camera address, pan tilt angle, alarm, preset position)
|
Model： VET-P20SEW-5H/DEK-Q56 5 million pixels, Explosion-Proof
VET-P20SEW-2H/DEK-Q56 2 million pixels, Explosion-Proof
Anti corrosion high-speed ball, made of 316L stainless steel, meets anti-corrosion standards
|
Beijing Weijute Electronic Technology Co., Ltd
