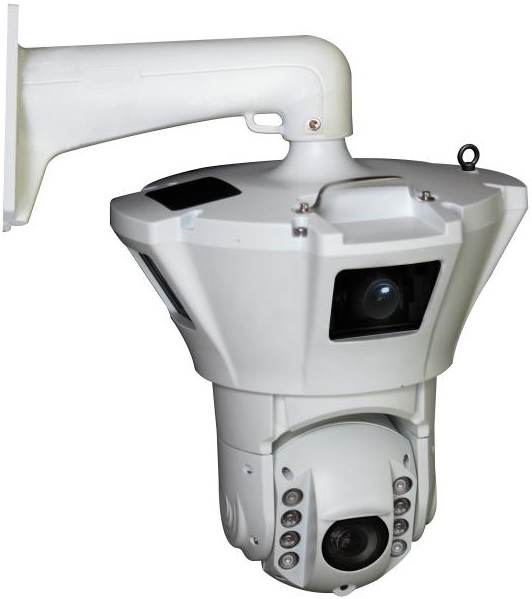

Fixed point camera, star level high-speed ball, and intelligent analysis
-
Support multi-target tracking
-
The fixed point camera detects the target, and the ball will automatically track the target, while also capturing high-definition close-up images at maximum magnification
-
Gun ball linkage 3D positioning and one click zoom, preset cruise and guard positions
-
Starlight grade high-definition fixed focus camera
-
Imaging: 1/2.8 "CMOS
-
Resolution: 1920x1080
-
Starlight level high-speed ball
-
Imaging: 1/2.8 "CMOS
-
Resolution: 1920X1080
-
Magnification: 30x optical
-
Focal length: 4.3mm—129mm
Starlight level HD fixed camera:
|
ITEMS
|
Specifications and Parameters
|
|
Network interface
|
RJ45 10M/100M adaptive Ethernet port
|
|
Support protocol
|
TCP/IP、HTTP、UDP、RTP/RTCP、RTSP、DHCP、SMTP
|
|
Sensor
|
1/2.8＂ CMOS
|
|
Lens
|
Electric zoom lens 3.6-8mm
|
|
Illuminance
|
0.005Lux
|
|
Warning area
|
6
|
|
Video format
|
Support NTSC or PAL
|
|
Encoding
|
Dual stream, H.265/MJEPG
|
|
Framerate
|
25 FPS(PAL), 30 FPS(NTSC)
|
|
Performance
|
Maximum 30fps, 32Kbps -8Mbps optional
|
|
Resolution
|
30fps@1920×1080—352X240
|
|
Delay
|
Less than 200 milliseconds (LAN)
|
|
System state
|
LED
|
|
Power
|
DC12V
/ 8W
|
Starlight level high-speed ball camera:
|
ITEMS
|
Specifications and Parameters
|
|
Network interface
|
RJ45
10M/100M adaptive Ethernet port
|
|
Support protocol
|
TCP/IP、HTTP、UDP、RTP/RTCP、RTSP、DHCP、SMTP、Multicast
|
|
Sensor
|
1/2.8＂CMOS
|
|
Lens
|
f=4.3mm—129mm, 30x optical, 16x electronic
|
|
IR distance
|
150M
|
|
Motion detection
|
On/ Off
|
|
Backlight Compensation
|
On/ Off
|
|
White balance
|
Auto, indoor, outdoor
|
|
video format
|
NTSC, PAL
|
|
Encoding
|
Dual stream, H.265/MJEPG
|
|
Performance
|
Maximum 30fps, 32Kbps -8Mbps optional
|
|
Resolution
|
1920×1080
|
|
Delay
|
Less than 200 milliseconds (LAN)
|
|
System state
|
AC24V
/ 3A
|
|
Power
|
-40
~ 60 ℃
|
|
PTZ
|
Range
|
Horizontal: 360 ° (continuous flip) Vertical:+2 ° -92 °
|
|
PTZ Speed
|
Preset : 360 °/s
|
|
Manual: 0.05 °~380 °/s (zoom selection)
|
|
Cruise: 1.4 °~180 °/s
|
|
Preset
|
240 preset positions
|
|
Cruise
|
4
|
|
Preset Cruise
|
8
|
|
Group
|
8
|
|
Ohter
|
Auto scanning, power-off protection, etc
|
|
OSD
|
On / Off
|
|
