H.265/H.264/MJPEG
-
5 million pixels 1/2.8 "CMOS
-
High definition resolution 2592X1944
-
Real time monitoring of personnel entering the alarm detection area
-
Only for pedestrians, no alarms for other vehicles, animals, etc
-
IR distance of 50 meters
-
Electric zoom lens 2.8mm-12mm
-
Digital Noise Reduction
-
Dual stream
-
The front-end is equipped with an alarm and a horn. When someone enters, the alarm flashes and the horn makes a sound (in Chinese characters inputted in advance)
-
Simultaneously transmit the alarm screen to the backend
-
JPEG image capture
-
0.005Lux
-
Password protection
-
1 audio input
-
1 audio output
-
Backlight Compensation
-
SD card storage
-
PoE
-
Support ONVIF protocol
-
Power supply 12VDC
|
ITEMS
|
Specifications and Parameters
|
|
Network Interface
|
RJ45 10M/100M adaptive Ethernet port
|
|
Protocols
|
TCP/IP、HTTP、UDP、RTP/RTCP、RTSP、DHCP、SMTP、Multicast
|
|
SENSOR
|
1/2.8＂ CMOS
|
|
LENS
|
2.8mm—12mm
|
|
IR Distance
|
50M
|
|
Illuminance
|
0.005Lux
|
|
Video Format
|
Supports NTSC or PAL formats
|
|
Encoding
|
Dual stream, H.265/H.264/MJEPG
|
|
Framerate
|
25 FPS(PAL), 30 FPS(NTSC）
|
|
Performance
|
Maximum 30fps, 32Kbps -8Mbps optional
|
|
Resolution
|
30fps@2592×1944—352X240
|
|
Delay
|
Less than 200 milliseconds (LAN)
|
|
System State
|
LED
|
|
Power
|
DC12V
/ 8W
|
|
Temperature
|
-40
~ 50 ℃
|

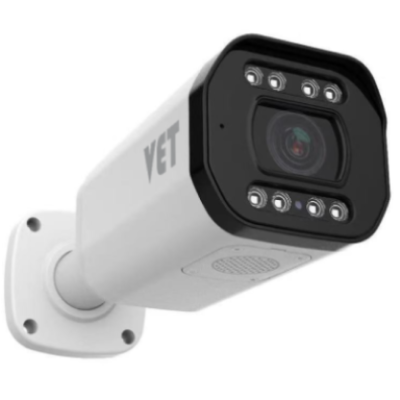

Model： VET-9928BWEWIRSL-5H 5 million pixels
VET-9928BWEWIRSL-2H 2 million pixels
|
Beijing Weijute Electronic Technology Co., Ltd
